Enforcement and Policing Technology

splash image


As an Electro-Optical Engineering company we have employed our expertise to ensure that traffic safety is not only advanced through Engineering intervention, but also through Enforcement or Policing intervention.

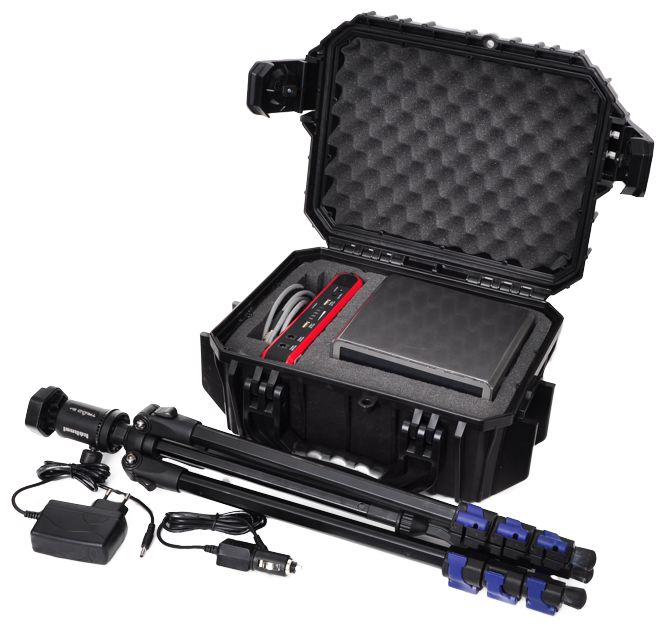

Camera image Camera in case image

Stuttgart Model S Advanced Radar Camera

The Stuttgart Model S camera is a new generation ultra-compact 3D radar camera for roadside as fixed or mobile unit, or for use in-vehicle as a Dashcam. Compact at just 1.6kg this is an ultra-portable device with many features available only in large systems.

  • Fixed red light enforcement with signal inputs
  • Mobile tripod or semi-fixed mount operation
  • Dash-mount operation with event video recording
  • Traffic statistics ideal for traffic surveys
  • Encrypted digital evidence admissible as primary criminal evidence
  • License plate recognition on offence images
  • Operation over 5 lanes using 5 Megapixel camera
  • Ability to enforce illegal lane crossings
  • 16 hours battery powered non-stop operation
  • Linux operating system with LCD touch screen
  • Wireless flash with 868MHz transceiver
  • USB, WiFi, Bluetooth, Ethernet, LTE
  • In-vehicle CAN interface
  • Wired and wireless flash support
  • Visible and infrared flash

Download Model S Camera Brochure
Overheight controller image

Radar Vision Over Height System

Radar Vision offers a multi-lane free flow over height control system. The system makes use of 3D scanning laser to accurately measure the vertical profile of vehicles.

  • Detects overheight objects as small as 10cm
  • Detects multiple lanes separately up to a typical accuracy of 12mm
  • Video or Camera recording of offenders
  • Trigger high power LED warning beacons
  • Detects vehicle in shoulder lane as well
  • Laser operation in rain
Overheight controller image Overheight controller image

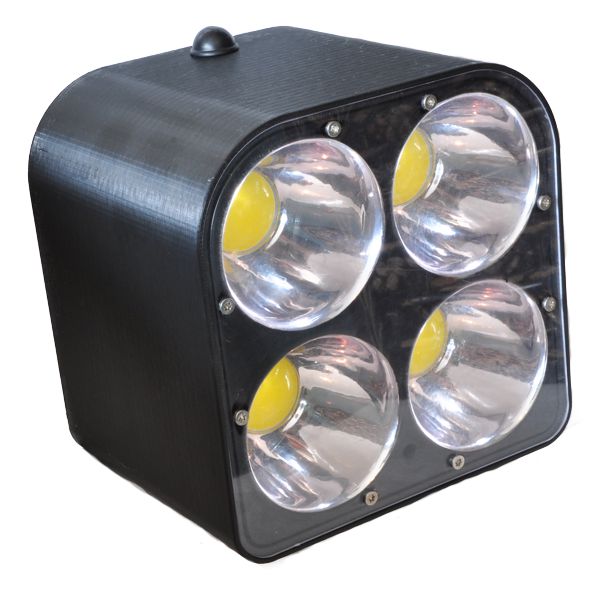

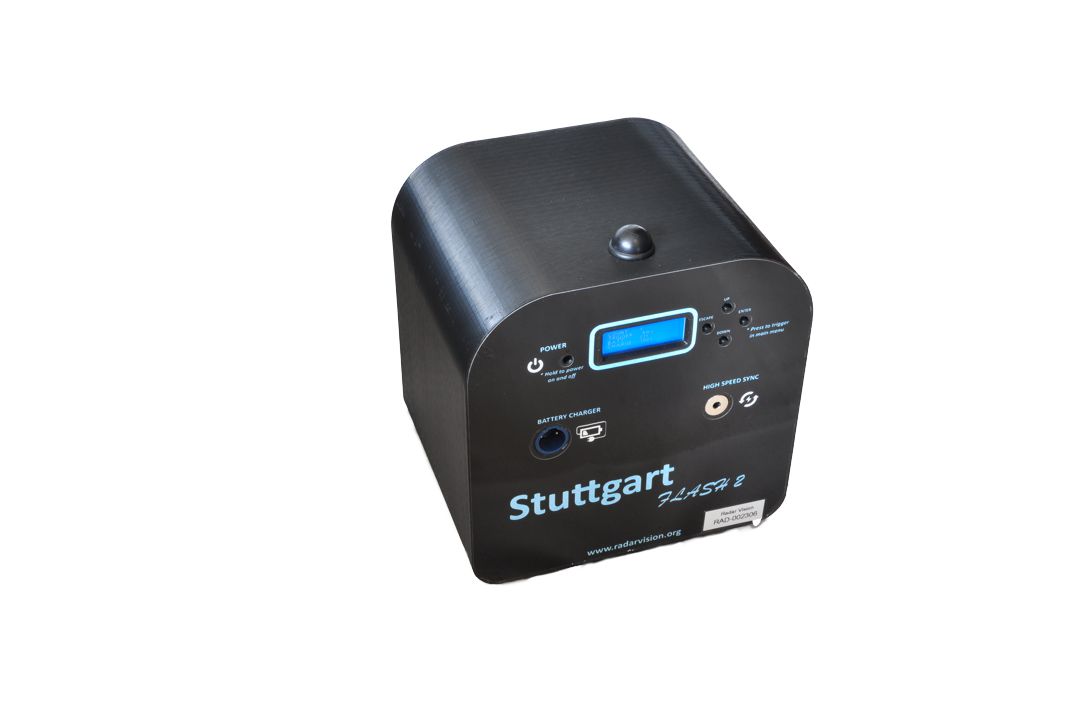

High Power LED Flash

High speed photography have very little time to collect photons. In enforcement cameras typically require a long depth of field to cover multiple lanes, which require a small aperture further reducing the amount of photons per microsecond onto the optical sensor/camera. High power Xenon flash units have traditionally been used, but is impractical for mobile enforcement and also has a limited life time. Radar Vision are the pioneers in LED flash units producing a flash at an equivalent output, but much more controllable light in time and output power.

  • 5,000 Watt Output
  • Configurable output time from 0.1us up to 30ms
  • UHF 868MHz radio transceiver to receive settings and triggers from camera
  • LED display count number of flashes, indicate battery level and also recharge level
  • Built-in Lithium Polymer battery able to deliver over 10,000 flashes per charge
  • Ambient light sensor
  • External wired trigger input

Download LED Flash Brochure
