Introduction

Radar Vision is an electronic design manufacturer. We manufacture and customise electronic products and intelligent firmware. You can purchase standard products or customise the products hardware and firmware for your requirements



VMS image

Low Power Variable Message Signs (VMS)

Radar Vision manufactures Line Matrix as well as Full Matrix Variable Message Signs as well as Sign Components for OEM manufacturers. The power consumption is so low in comparison with leading manufacturers that the savings on the copper alone to power the sign is worth more the the cost of the sign itself. Lower energy consumption also translate to lower environmental management in the sign. Each LED panel is fitted with its own 32-bit processor with on-board diagnostics and even the ability to drive the rest of the sign. Some features

  • Spread spectrum brightness control extend power supply life and limit EMI
  • EN12966 compliant and certified
  • Each board has voltage, temperature
  • Automatic addressing and configuration
  • No special cables required - CAT6 machine crimped cables increase reliability
  • Fully waterproof LED boards
  • Built-in font generator
  • Field firmware programmable down to single panel level
  • Multi-protocol - you can retrofit existing signs with these panels
NTCIP controller image

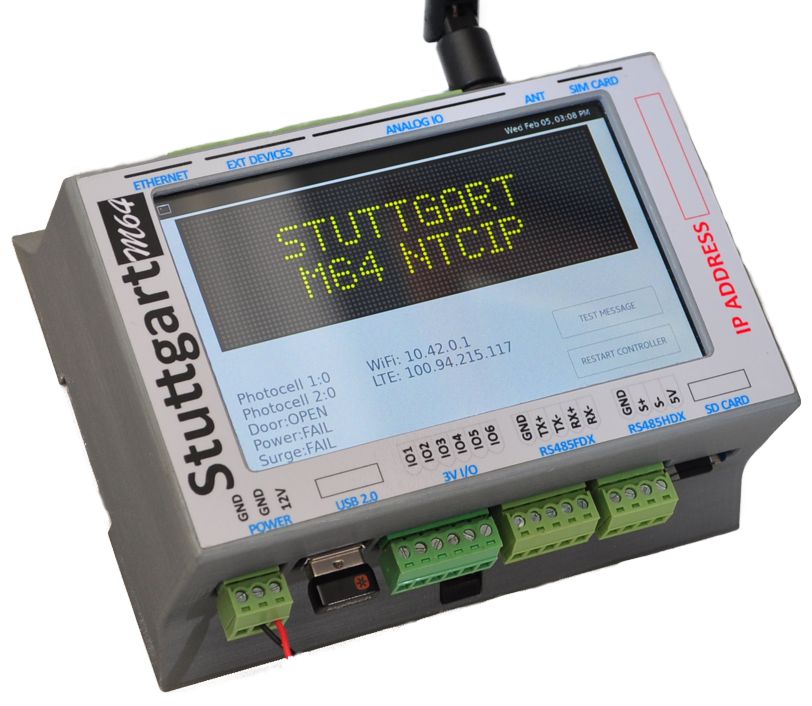

NTCIP Controller for retrofit

Radar Vision developed the NTCIP controller to interface to various Portable (PCMS) and VMS manufacturers.

  • 4G LTE 42Mbps
  • 64GB eMMC + 128GB micro SD card
  • WiFi 802.11 a/b/g/n
  • Bluetooth 4.2
  • GPS/GLONASS/BeiDou/Galileo
  • 5” Capacitive Touch Screen
  • Built-in Temperature/Humidity sensor
  • Door switch, AC Fail, Battery monitoring, etc
  • Real-time clock with super-cap backup
Bluetooth LED panel image

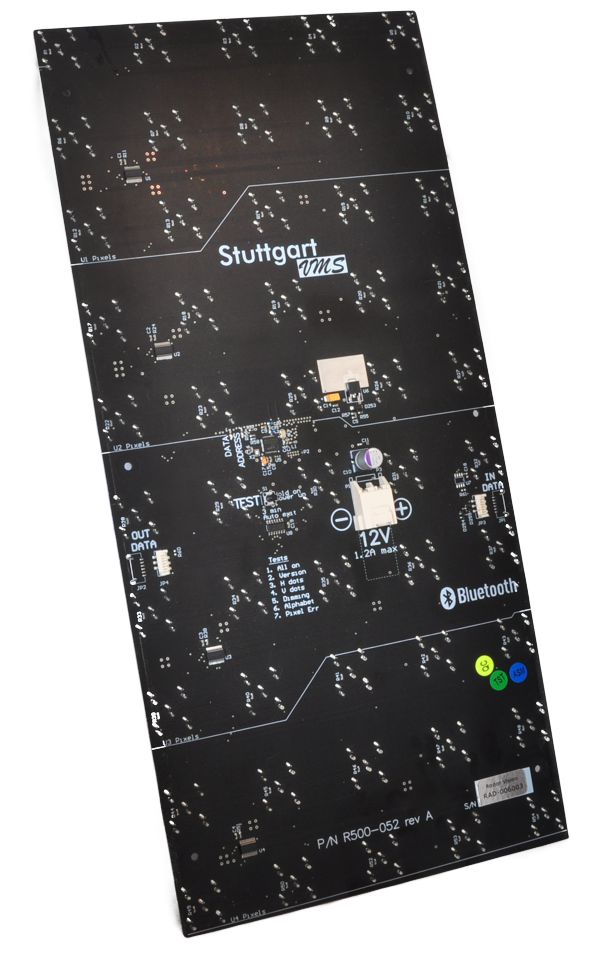

Modular Bluetooth 5 Sign Panels

These modern Bluetooth 5 panels allow you to manufacture your own signs. There are no wiring between panels, which makes the signs much more reliable in the long term. Data is transmitted from the NTCIP controller via Wireless Bluetooth protocol to the sign panels. Due to the short distances the radio connectivity and reliability is excellent. These panels are simple to install, simple to maintain and cost effective. We will assist you with mechanical drawings of new signs. All you need to do is add power supplies. no other equipment is necessary

  • EN12966 compliant
  • Bluetooth 5 connectionless data transfer
  • Each board has voltage and temperature sensing built in
  • Boards can be configured and operated from Cellphone App
  • Fully waterproof LED boards
  • Built-in font generator and test patterns
  • Could be wired using RS485 on request from customer
  • Field firmware programmable over the air
